Features

- The multi-purpose centrifuges designed for large-volume daily-working laboratories
- Max. speed of 12,000 rpm with high capacity and a large assortment of rotor
- Fast cooling function to 4℃ in 5 minutes for fast startup of cooled samples
- The compressor-off function when the lid is open minimizes unnecessary cooling and frosting.

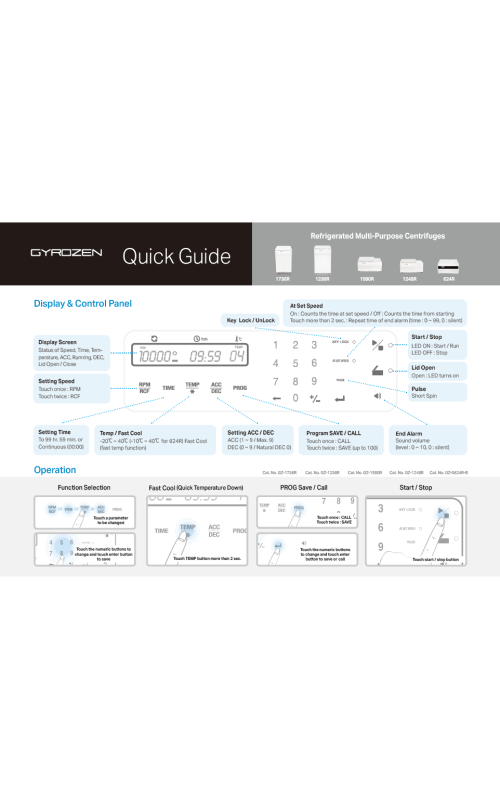

- Intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
- Selectable time mode of "at set SPEED" for counting running time only when the set speed is reached
- A separate "PULSE" key for a quick spin - Parameters can be changed during operation.
- Key lock function helps the set parameters secured during operation.
- With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
- Lid drop protection design allows easy and safe loading or unloading of samples.
- A large assortment of rotors, buckets, and adaptors support diverse applications with one instrument.

Technical Specifications

Max. RPM/ RCF(Fixed angle): 12,000/ 16,582 x g

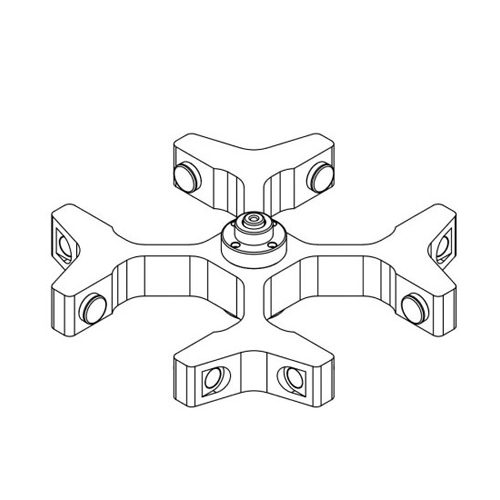

Max. RPM/ RCF (Swing-out): 5,000/ 5,394 x g

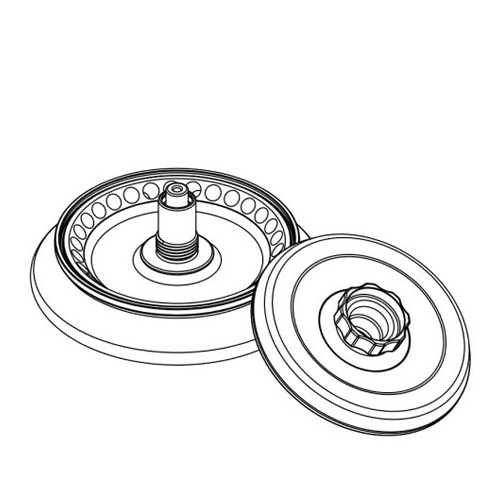

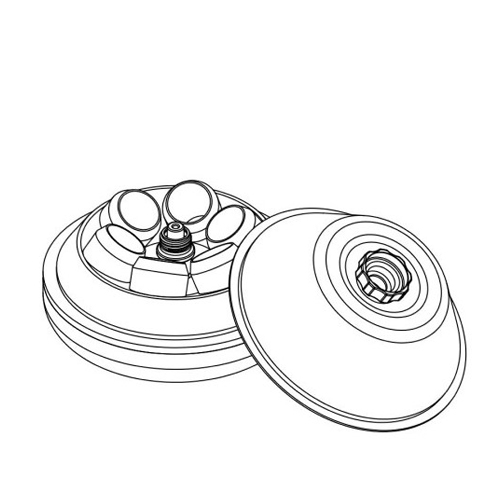

Max. capacity (Fixed angle): 6 x 85 ml, 30 x 1.5/ 2.0 ml

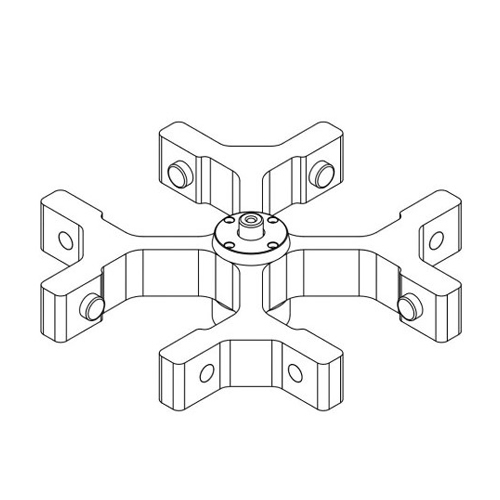

Max. capacity (Swing-out): 4 x 250 ml, 48 x 15 ml, 16 x MTP
Temp range (℃): - 20 ~ 40
Fast-cool button: Yes
Time control: Pulse, timed < 100 hr or continuous
Time counting range: Selectable, at set speed or from starting
RCF/ RPM conversion: Yes
Noise level (dependent on rotor): ≤60 dB
ACC/ DEC ramps: 9/ 10
Program memory: 100
Parameters on display window: RPM or RCF, Operation Status, Lid Open/Close, Time (Hr: Min), Temp., ACC/DEC
Display: White LCD
Automatic rotor Identification: Yes
Imbalance cut-off: Yes
Safety lid lock: Yes
Lid drop protection: Yes
Dimension (W x D x H, mm): 655 x 610 x 355
Power Requirement (kVA): 2.5
Weight without rotor (kg): 78
Power supply: AC 220-230 V, 50/60 Hz (110 V optional)

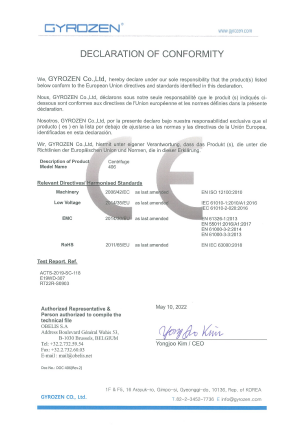

CE MARK: Yes
Cat. No.: GZ-1248R (GZ-1248R-110)
